Passive Solar Design Principles: A Complete Guide

Passive solar design principles explain how a building can use sunlight, climate, orientation, windows, thermal mass, insulation, shading, and ventilation to improve comfort while reducing unnecessary heating and cooling demand. These principles are not about one product or one architectural style. They are about designing a building so it works with the sun instead of fighting against it. For homeowners, understanding passive solar design can help you ask better questions before building or renovating. For architects and designers, these principles provide a practical framework for climate-responsive design. For students, they show how architecture, energy performance, physics, and human comfort connect in real buildings. This guide explains the most important passive solar design principles in practical terms. If you are new to the topic, it may help to first read what passive solar architecture is, then return here for a deeper look at how the design process works.

What Are Passive Solar Design Principles?

Passive solar design principles are the core ideas used to design buildings that collect, store, control, and distribute solar energy naturally. Instead of relying first on mechanical systems, passive solar design uses the building’s form, envelope, materials, and openings to improve comfort. The main passive solar design principles include:

• Orienting the building for useful solar exposure
• Placing windows where they can collect winter sun and avoid unwanted summer heat
• Using thermal mass to store and release heat
• Insulating and air sealing the building envelope
• Adding shading devices to prevent overheating
• Using natural ventilation where climate allows
• Designing for daylight without excessive glare or heat gain
• Adapting the strategy to the local climate

A passive solar building is successful when these elements work together. A large south-facing window alone does not make a house passive solar. A concrete floor alone does not make a design efficient. A deep roof overhang alone does not guarantee comfort. The value comes from integration. The U.S. Department of Energy explains passive solar homes through the relationship between solar collection, thermal storage, distribution, and control. That basic logic is useful for both simple homes and more advanced low-energy buildings.

Why Passive Solar Design Principles Matter

Passive solar design principles matter because many of the most important performance decisions are made before construction begins. Once a house is built, it is difficult and expensive to change its orientation, floor plan, window placement, massing, roof geometry, and relationship to the sun. Good passive solar design can support:

• Better indoor comfort
• Lower heating demand in suitable climates
• Reduced overheating risk when shading is properly designed
• Improved daylighting
• Better use of natural materials
• More efficient HVAC sizing
• Lower long-term operating costs
• A stronger connection between architecture and climate

However, passive solar design must be realistic. It does not automatically eliminate the need for heating, cooling, or ventilation systems. Most homes still need mechanical backup systems, especially during cloudy periods, extreme temperatures, humid weather, or long winter nights. The goal is not to make unrealistic promises. The goal is to reduce loads, improve comfort, and design a building that performs more intelligently.

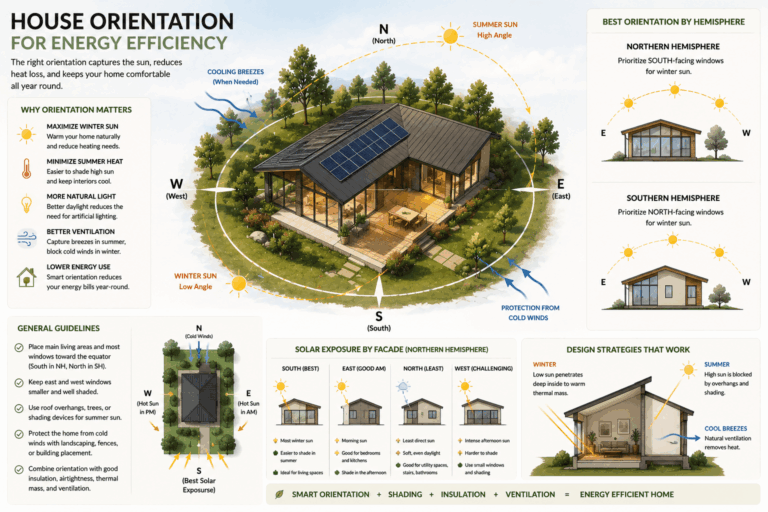

Principle 1: Building Orientation

Building orientation is the foundation of passive solar design. It determines how the building receives sunlight during different seasons and times of day. In the Northern Hemisphere, the main solar-facing side of a passive solar building is usually oriented toward true south. This allows the building to receive low-angle winter sun, which can enter deeper into the interior. During summer, when the sun is higher in the sky, properly designed overhangs can block much of the direct sun from entering. In the Southern Hemisphere, the strategy is generally reversed, and north-facing exposure is usually more important for passive solar heating. Orientation affects:

• Winter heating potential
• Summer cooling load
• Window placement
• Room layout
• Daylight quality
• Roof overhang design
• Solar panel placement if active systems are added later

A good floor plan often places living rooms, dining areas, kitchens, studios, and other frequently used spaces along the solar-facing side. Less frequently occupied spaces, such as garages, storage rooms, closets, and utility rooms, can act as buffer zones on colder or less favorable sides of the building. Orientation is so important that it deserves careful study before the design is finalized. A more detailed guide on passive solar orientation can explore true south, magnetic south, sun path diagrams, site shading, and how to evaluate solar access before construction.

Principle 2: Solar Gain

Solar gain is the heat a building receives from sunlight. In passive solar design, useful solar gain is welcomed during colder periods and controlled or blocked during warmer periods. Solar gain depends on several factors:

• Window orientation
• Glass area
• Glazing performance
• Sun angle
• Season
• Cloud cover
• Interior surface materials
• Shading from trees, buildings, or overhangs

In a cold climate, winter solar gain can help warm interior spaces. In a hot climate, uncontrolled solar gain can quickly become a problem. This is why passive solar design is never just about “letting the sun in.” It is about letting the right amount of sun in at the right time of year. Solar gain should always be evaluated together with thermal mass, shading, insulation, and ventilation. If sunlight enters a room but there is no thermal mass to absorb it, the space may overheat during the day and cool quickly at night. If sunlight enters through inefficient windows, the same windows may also lose heat after sunset.

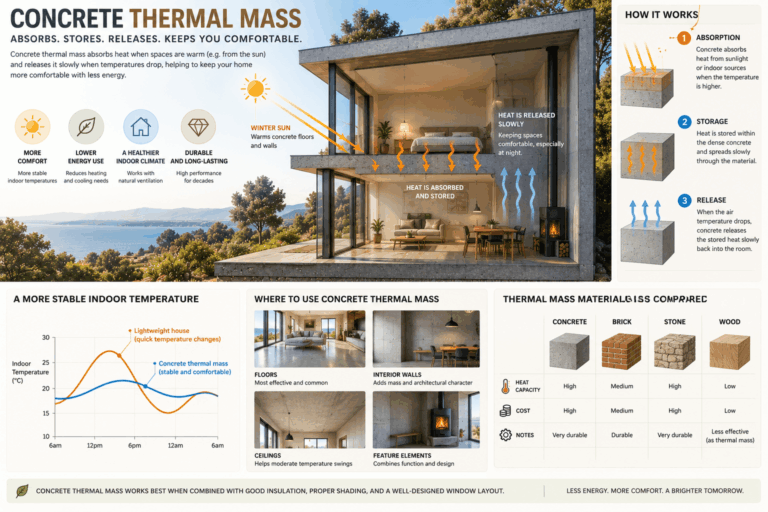

Principle 3: Thermal Mass

Thermal mass is one of the most important passive solar design principles because it helps stabilize indoor temperature. It does this by absorbing, storing, and slowly releasing heat. Common thermal mass materials include:

• Concrete slabs
• Brick walls
• Stone floors
• Tile surfaces
• Adobe
• Rammed earth
• Masonry walls

In a direct gain passive solar home, sunlight enters through windows and strikes floors or walls with good thermal mass. These materials absorb heat during the day. Later, when indoor temperatures drop, the stored heat is released back into the room. Thermal mass can also help with passive cooling in some climates. In hot dry regions, night ventilation can cool the mass, allowing it to absorb heat the next day. In humid climates, this strategy must be used carefully because outdoor air may add moisture and reduce comfort. The placement of thermal mass matters. A concrete slab covered with thick carpet will not perform the same way as an exposed concrete or tile floor that receives direct sunlight. A masonry wall hidden behind insulation or finishes may not interact effectively with indoor air. If you want to explore this topic deeply, the future guide to thermal mass in passive solar homes should cover material selection, exposed surface area, thickness, location, and common mistakes.

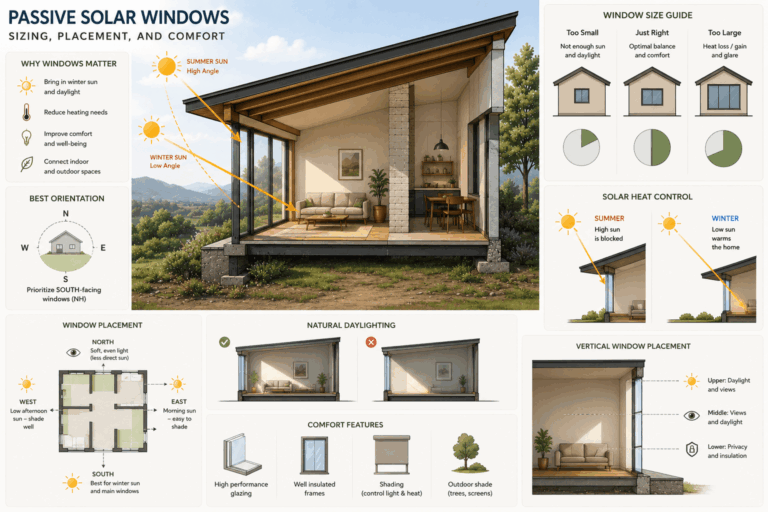

Principle 4: Window Placement and Glazing

Windows are both opportunities and risks in passive solar design. They can collect useful winter sunlight, provide daylight, support views, and allow ventilation. They can also cause heat loss, glare, overheating, and comfort problems if poorly designed. Good window design considers:

• Orientation
• Glass area
• Window-to-wall ratio
• Glazing type
• Frame performance
• Solar heat gain coefficient
• U-factor
• Shading
• Daylighting quality
• Privacy and views

South-facing windows in the Northern Hemisphere are often useful for passive solar heating because they can receive winter sun and be shaded more easily in summer. East-facing windows bring morning light and heat. West-facing windows can be difficult because low afternoon sun often causes overheating. North-facing windows usually provide more even light but less direct solar heat in the Northern Hemisphere. High-performance glazing is important because windows are usually weaker thermal elements than insulated walls. A passive solar home with poor windows may lose significant heat at night, even if it gains heat during the day. Window placement should therefore be designed as part of the whole building system. The right window in the wrong place can still cause problems.

Principle 5: Insulation and Airtightness

Insulation and airtightness are essential because useful solar heat must be retained. Without a strong building envelope, passive solar gain can be lost quickly through walls, roofs, floors, windows, and air leaks. Insulation slows heat transfer. Airtightness reduces uncontrolled air leakage. Together, they help stabilize indoor temperatures and reduce heating and cooling loads. This principle is especially important in cold climates, where heat retention is critical. It also matters in hot climates, where insulation can help keep unwanted heat outside. A good passive solar building envelope should address:

• Wall insulation
• Roof or attic insulation
• Floor and foundation insulation
• Window performance
• Door performance
• Thermal bridges
• Air leakage
• Moisture control

Passive solar architecture overlaps with broader high-performance building principles. Organizations such as Phius emphasize enclosure quality, airtightness, thermal bridge reduction, and balanced ventilation as important parts of passive building performance. It is a mistake to design for solar gain while ignoring heat loss. The building must be able to hold the comfort it collects.

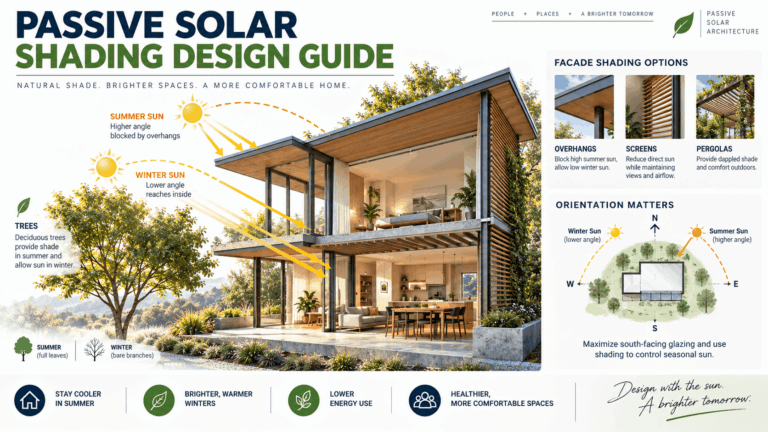

Principle 6: Shading and Overhangs

Shading is the control system of passive solar design. It helps determine when sunlight enters the building and when it is blocked. In many passive solar homes, properly designed roof overhangs allow low winter sun to enter while blocking high summer sun. Other shading devices include pergolas, louvers, exterior blinds, shutters, awnings, deciduous trees, and deep window recesses. Good shading design considers:

• Solar altitude
• Solar azimuth
• Seasonal sun angles
• Window height
• Window orientation
• Overhang depth
• Climate
• Nearby shading from trees or buildings

Horizontal overhangs often work well on south-facing windows in the Northern Hemisphere. East and west windows are more difficult because the sun is lower in the sky in the morning and afternoon. These orientations may need vertical fins, exterior shutters, vegetation, or reduced glazing area. Shading should be designed early, not added as decoration after overheating appears. A dedicated article on passive solar shading and overhangs can explain how to size overhangs and avoid blocking useful winter sun.

Principle 7: Natural Ventilation

Natural ventilation uses openings, wind pressure, and temperature differences to move air through a building. It can help remove heat, improve comfort, and reduce dependence on mechanical cooling when outdoor conditions are suitable. Common natural ventilation strategies include:

• Cross ventilation through windows on opposite sides of a room
• Stack ventilation using high and low openings
• Clerestory windows that release warm air
• Operable skylights
• Ventilated stairwells or atriums
• Night flushing in dry climates

Ventilation must be matched to climate. In hot dry climates, night air can be used to cool the building’s thermal mass. In hot humid climates, natural ventilation may feel comfortable at some times but can also bring in moisture that increases discomfort. In cold climates, uncontrolled air leakage is not the same as good ventilation. Airtight buildings still need intentional ventilation for indoor air quality. Passive solar design should not focus only on winter heating. A building that collects solar energy but cannot release unwanted heat may become uncomfortable.

Principle 8: Daylighting

Daylighting is the use of natural light to illuminate interior spaces. It is closely related to passive solar design but should not be confused with solar heat gain. Good daylighting can make a home feel brighter, healthier, and more connected to the outdoors. It may also reduce the need for artificial lighting during daytime hours. However, daylighting must be controlled. Too much direct sun can cause glare, overheating, and fading of interior materials. Poorly placed windows can create bright spots and dark corners instead of balanced illumination. Useful daylighting strategies include:

• Clerestory windows
• Light shelves
• High windows
• Reflective interior surfaces
• Balanced window placement
• Shaded glazing
• Open floor plans where appropriate

The best passive solar buildings use daylight as part of the overall comfort strategy. They bring in light without creating excessive heat or glare.

Principle 9: Climate-Responsive Design

Passive solar design principles must always be adapted to climate. A cold climate strategy is not the same as a hot climate strategy. A dry climate is not the same as a humid climate. A mountain site is not the same as a coastal site. Climate affects:

• How much solar gain is useful
• How much shading is needed
• How much thermal mass is appropriate
• Whether night ventilation is useful
• How important humidity control becomes
• Which window specifications are best
• How much insulation is required

In cold sunny climates, passive solar design often emphasizes winter heat collection, thermal mass, and strong insulation. In hot dry climates, it may emphasize shading, thermal mass, night cooling, and ventilation. In hot humid climates, shading, moisture control, ventilation strategy, and reduced solar gain may matter more than heat storage. This is why a future hub on passive solar design by climate should be one of the most important resources on the site.

How These Principles Work Together

Passive solar design principles do not work in isolation. They work as a system. For example, a south-facing window can bring in winter sun. But without thermal mass, the room may overheat during the day. Without insulation, the heat may disappear quickly at night. Without shading, the same window may cause summer discomfort. Without ventilation, unwanted heat may remain trapped inside. A successful passive solar design balances all of the following:

• Solar access
• Window size and placement
• Thermal mass
• Insulation
• Airtightness
• Shading
• Ventilation
• Climate
• Occupant behavior

This is why passive solar architecture is best considered early in the project. It affects the site plan, building shape, room layout, structural decisions, envelope design, and mechanical systems.

Practical Example: Applying Passive Solar Design Principles to a Small Home

Consider a 1,500-square-foot family home in a cold, sunny climate. The site has good southern exposure. The design places the living room, kitchen, and dining area along the south side of the home. Bedrooms are placed toward the east for morning light. Storage, bathrooms, and utility spaces are placed toward the north to act as buffer zones. The south-facing windows are sized carefully. They are large enough to admit useful winter sun but not so large that they cause excessive heat loss or glare. A concrete slab floor is left exposed in the main living area so it can absorb sunlight during the day and release heat later. The roof overhang is designed to block high summer sun but allow lower winter sun to enter. Walls and roof are well insulated. The building envelope is air sealed. Operable windows on opposite sides of the home allow cross ventilation during mild weather. The result is not a house that needs no heating or cooling. It still has mechanical systems. But those systems do not have to work as hard because the building itself is helping manage heat, light, and air.

Comparison Table: Passive Solar Design Principles

Principle	Main Purpose	Design Benefit	Common Risk
Orientation	Aligns the building with seasonal sun	Improves winter solar gain and daylight	Poor solar access if site is shaded or misaligned
Solar gain	Uses sunlight as a heat source	Can reduce heating demand in suitable climates	Overheating if uncontrolled
Thermal mass	Stores and releases heat	Reduces temperature swings	Ineffective if poorly placed or covered
Glazing	Controls light, heat gain, and views	Supports heating and daylighting	Heat loss, glare, or overheating
Insulation	Slows heat transfer	Improves comfort and energy performance	Weak envelope reduces all passive benefits
Shading	Blocks unwanted solar gain	Reduces summer overheating	May block useful winter sun if poorly designed
Ventilation	Moves air and removes heat	Supports passive cooling and air quality	Humidity or heat gain if used at the wrong time
Daylighting	Uses natural light indoors	Improves visual comfort and reduces artificial lighting	Glare and uneven lighting

Common Passive Solar Design Mistakes

1. Starting Too Late

Passive solar design should begin with site planning and building layout. If the floor plan, orientation, roof form, and windows are already fixed, the best opportunities may be lost. How to avoid it: Consider passive solar design before finalizing the house plan.

2. Using Too Much Glass

Large windows can look attractive, but excessive glazing can cause overheating, glare, and heat loss. How to avoid it: Size windows according to climate, orientation, thermal mass, and shading.

3. Forgetting Thermal Mass

Without thermal mass, solar heat may not be stored effectively. How to avoid it: Use exposed concrete, tile, masonry, brick, stone, or other mass where it can interact with sunlight and indoor air.

4. Ignoring Summer Comfort

A home designed only for winter solar gain may become uncomfortable during summer. How to avoid it: Include shading, ventilation, and passive cooling strategies from the beginning.

5. Treating Insulation as Optional

Solar heat is not useful if it escapes quickly. How to avoid it: Design a strong building envelope with appropriate insulation, air sealing, and high-performance windows.

6. Copying a Design From Another Climate

A passive solar home in a dry mountain climate may not work well in a humid coastal climate. How to avoid it: Adapt every strategy to local climate, site conditions, humidity, and seasonal sun patterns.

7. Confusing Passive Solar Design With Solar Panels

Solar panels generate electricity. Passive solar design shapes the building itself to manage heat, light, and comfort. How to avoid it: Reduce the building’s energy demand first, then consider active solar technologies as a complementary system.

Mini Case Study: A Better Passive Solar Layout

A couple wants to build a small home on a rural site with good southern exposure. Their first plan places the garage and storage rooms on the south side because it creates a simple driveway layout. The living room faces west to capture the view, with large windows exposed to afternoon sun. During design review, the architect identifies several passive solar problems. The south side is being wasted on low-occupancy spaces. The west-facing glass may cause summer overheating. The main living spaces will receive less useful winter sun. The revised design moves the living room, dining area, and kitchen to the south side. The garage shifts to the north. West-facing glass is reduced and shaded. A concrete floor is added in the main living area. South-facing windows are sized for winter solar gain, and roof overhangs are designed to reduce summer heat. The final design still respects the view, but it no longer sacrifices comfort and energy performance. This is the value of applying passive solar design principles early: the building can become more comfortable without relying only on larger mechanical systems.

Tips for Homeowners

• Ask about solar orientation before choosing a floor plan.
• Do not assume that more windows always mean better design.
• Make sure your designer explains how the home will avoid overheating.
• Think about winter comfort and summer comfort together.
• Use high-performance windows appropriate for your climate.
• Keep thermal mass exposed where it can be useful.
• Prioritize insulation and airtightness.
• Plan for backup heating, cooling, and ventilation.
• Consider landscaping as part of the shading strategy.
• Learn the basics before discussing design options with a builder.

If you are planning a new home, your next step should be to study passive solar house design, where these principles are applied to floor plans, room placement, windows, roof overhangs, and real residential layouts.

Tips for Architects and Designers

• Start with climate analysis and site orientation.
• Use sun path diagrams before finalizing massing.
• Coordinate room layout with solar exposure.
• Balance glazing with thermal mass and insulation.
• Reduce east and west overheating risks.
• Model seasonal shading and solar gain where possible.
• Coordinate passive strategies with HVAC sizing.
• Use daylighting analysis to reduce glare and improve visual comfort.
• Explain trade-offs clearly to clients.
• Document assumptions about occupant behavior, shading use, and ventilation.

For professional projects, passive solar design should be part of a broader performance strategy that includes envelope detailing, energy modeling, moisture control, mechanical ventilation, and local code compliance.

FAQ About Passive Solar Design Principles

What are the main passive solar design principles?

The main passive solar design principles are orientation, solar gain, thermal mass, window placement, insulation, airtightness, shading, natural ventilation, daylighting, and climate-responsive design.

What is the most important passive solar design principle?

Orientation is often the most important early principle because it affects solar gain, room layout, window placement, shading, daylight, and long-term comfort. However, orientation must work together with insulation, glazing, thermal mass, and shading.

Does passive solar design work without thermal mass?

It can still provide daylight and some solar heat, but thermal mass is important for storing heat and reducing temperature swings. Without enough mass, rooms may overheat during sunny periods and cool quickly later.

Are south-facing windows always best?

In the Northern Hemisphere, south-facing windows are often best for passive solar heating because they receive useful winter sun and can be shaded more easily in summer. In the Southern Hemisphere, north-facing windows often serve this role. Site conditions and climate can change the strategy.

Can passive solar design work in hot climates?

Yes, but the priorities change. In hot climates, passive solar design often focuses on shading, reduced heat gain, ventilation, insulation, reflective surfaces, and passive cooling rather than collecting winter heat.

Is passive solar design expensive?

Some passive solar strategies, such as orientation and room layout, can be low-cost when planned early. Other strategies, such as high-performance windows, added thermal mass, and advanced envelope detailing, may increase upfront cost but can improve comfort and long-term performance.

Do passive solar homes still need HVAC?

Most passive solar homes still need heating, cooling, and ventilation systems. Passive solar design can reduce the load on those systems, but it does not usually eliminate them completely.

What is the difference between passive solar design and passive house design?

Passive solar design focuses on using solar orientation, windows, thermal mass, shading, and ventilation to manage heat and comfort. Passive House design is a specific high-performance building standard focused on very low energy demand, airtightness, insulation, thermal bridge reduction, and ventilation. A building can use both approaches, but they are not the same thing.

Conclusion

Passive solar design principles provide a practical foundation for creating buildings that are more comfortable, energy efficient, and responsive to climate. The most important principles include orientation, solar gain, thermal mass, window placement, insulation, shading, ventilation, daylighting, and climate adaptation. The real power of passive solar design comes from integration. A window, wall, floor, roof overhang, or ventilation opening is not effective by itself. Each element must support the others. The building must collect useful solar energy, store it when appropriate, retain it through a strong envelope, block it when excessive, and release heat when needed. For homeowners, these principles can help you make better decisions before building or renovating. For architects and designers, they provide a clear framework for climate-responsive design. For anyone interested in sustainable architecture, passive solar design is one of the most important concepts to understand. The next step is to apply these ideas to real projects by studying passive solar house design, where orientation, floor plans, glazing, thermal mass, shading, and ventilation come together in the design of a complete home.
