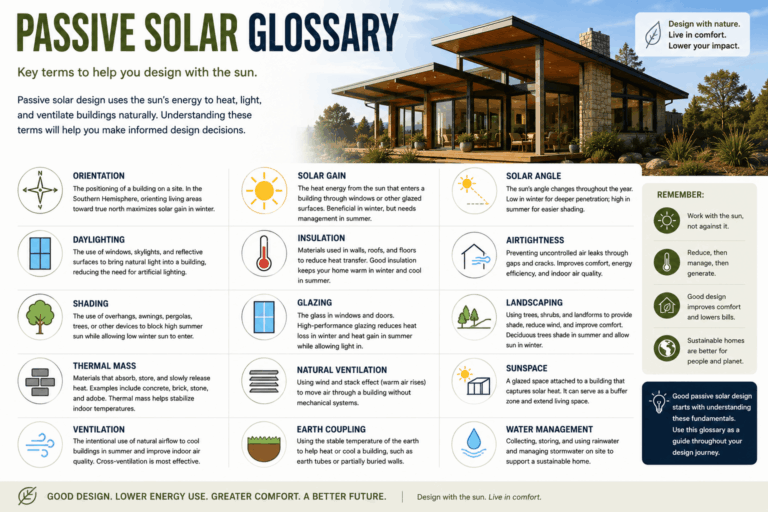

Passive Solar Glossary

This passive solar glossary explains the most important terms used in passive solar architecture, passive solar design, energy-efficient homes, sustainable architecture, and climate-responsive building. It is designed as a simple reference for homeowners, architects, students, builders, and anyone learning how buildings can work more intelligently with the sun and climate.

Passive solar architecture includes many connected concepts: solar gain, thermal mass, orientation, glazing, insulation, shading, natural ventilation, daylighting, passive heating, passive cooling, and building envelope performance. Understanding these terms makes it easier to evaluate house plans, read technical guides, speak with architects or builders, and avoid common passive solar design mistakes.

If you are completely new to the subject, start with what passive solar architecture is. Then use this glossary as a reference while studying passive solar design principles, passive solar house design, and passive solar design by climate.

How to Use This Glossary

This glossary is organized by topic so you can understand passive solar terms in context. Passive solar design is easier to learn when terms are grouped by how they function in a building.

You can use this page to:

• Understand beginner passive solar terms
• Review technical vocabulary while reading design guides
• Prepare for conversations with architects, builders, or energy consultants
• Connect related ideas such as solar gain, thermal mass, glazing, and shading
• Find deeper guides on specific passive solar topics

Many glossary terms are large enough to deserve full articles. For example, thermal mass, passive solar orientation, direct gain passive solar, and Trombe wall are detailed topics that should be studied beyond a short definition.

Core Passive Solar Terms

Passive Solar Architecture

Passive solar architecture is a design approach that uses sunlight, climate, orientation, windows, thermal mass, insulation, shading, and ventilation to improve indoor comfort and reduce unnecessary heating and cooling demand.

It uses the building itself as part of the energy strategy rather than relying first on mechanical equipment.

Passive Solar Design

Passive solar design is the process of arranging a building so it can collect, store, retain, block, or release solar heat naturally. It includes decisions about orientation, glazing, thermal mass, shading, insulation, ventilation, and climate response.

Passive Heating

Passive heating is the use of architectural design to capture and retain heat without relying primarily on mechanical heating systems. In passive solar homes, passive heating often comes from sunlight entering through properly oriented windows and warming interior thermal mass.

Passive Cooling

Passive cooling is the use of design strategies to reduce heat gain and improve comfort without relying only on air conditioning. It may include shading, natural ventilation, night flushing, roof insulation, reflective surfaces, and reduced solar heat gain.

Solar Gain

Solar gain is the heat a building receives from sunlight. In passive solar design, solar gain can be useful during colder periods and harmful during warm periods if it is not controlled.

Useful Solar Gain

Useful solar gain is solar heat that enters a building when heat is needed and can be stored, distributed, or retained without causing discomfort.

Unwanted Solar Gain

Unwanted solar gain is solar heat that enters when it is not needed. It can increase cooling demand, cause glare, and create overheating.

Daylighting

Daylighting is the use of natural light to illuminate indoor spaces. Good daylighting improves visual comfort without creating excessive glare or heat gain.

Bioclimatic Design

Bioclimatic design is architecture that responds to local climate conditions such as sun, wind, humidity, rainfall, and seasonal temperature patterns. Passive solar architecture is one form of bioclimatic design.

Low-Energy Building

A low-energy building is designed to reduce heating, cooling, lighting, and operational energy demand through envelope quality, efficient systems, climate response, and careful design.

Solar Orientation Terms

Solar Orientation

Solar orientation describes how a building is positioned in relation to the sun. It affects solar gain, daylight, shading, overheating risk, and room layout.

True South

True south is the geographic direction toward the South Pole. In the Northern Hemisphere, passive solar homes often use true south as the main solar-facing direction.

True North

True north is the geographic direction toward the North Pole. In the Southern Hemisphere, true north is often the main solar-facing direction for passive solar heating.

Magnetic Declination

Magnetic declination is the difference between magnetic north and true north. It matters because a compass reading may not show the exact solar orientation needed for passive solar design.

Solar Access

Solar access is the ability of a site, window, roof, or wall to receive sunlight without obstruction from trees, buildings, hills, fences, or other shading elements.

Sun Path

The sun path is the apparent movement of the sun across the sky during the day and across the seasons. Understanding the sun path helps with orientation, window placement, and shading design.

Solar Altitude

Solar altitude is the angle of the sun above the horizon. It is usually lower in winter and higher in summer, which makes seasonal shading possible.

Solar Azimuth

Solar azimuth is the compass direction of the sun at a specific time. It helps designers understand where sunlight comes from throughout the day.

Solar Noon

Solar noon is the time when the sun reaches its highest point in the sky for a given location. It is useful for understanding peak sun position and shading geometry.

Thermal Mass Terms

Thermal Mass

Thermal mass is the ability of a material to absorb, store, and slowly release heat. Common thermal mass materials include concrete, brick, stone, tile, adobe, rammed earth, and masonry.

Heat Storage

Heat storage is the process of capturing thermal energy in a material so it can be released later. Passive solar homes often use heat storage to shift daytime solar heat into evening comfort.

Thermal Lag

Thermal lag is the delay between when a material absorbs heat and when it releases that heat. Materials with useful thermal mass often release heat slowly over time.

Specific Heat Capacity

Specific heat capacity is the amount of heat a material can store per unit of mass. Materials with higher specific heat capacity can store more thermal energy for the same weight.

Density

Density describes how much mass a material has in a given volume. Dense materials such as concrete, stone, and brick often provide useful thermal mass.

Exposed Thermal Mass

Exposed thermal mass is thermal mass that is visible or connected to indoor air and sunlight. A concrete floor exposed to winter sun is more useful than the same slab covered by thick carpet.

Thermal Storage Wall

A thermal storage wall is a wall designed to absorb and store heat. Trombe walls are a common passive solar example.

Window and Glazing Terms

Glazing

Glazing refers to the glass or transparent material in windows, doors, skylights, or curtain walls. In passive solar design, glazing affects heat gain, daylight, views, and heat loss.

Solar Heat Gain Coefficient

Solar heat gain coefficient, often shortened to SHGC, measures how much solar heat passes through a window. Higher SHGC allows more solar heat in. Lower SHGC blocks more solar heat.

U-Factor

U-factor measures how quickly heat moves through a window or building component. Lower U-factor usually means better insulating performance.

Visible Transmittance

Visible transmittance describes how much visible light passes through glazing. Higher visible transmittance allows more daylight, but glare control may still be needed.

Low-E Glass

Low-E glass has a low-emissivity coating that helps control heat transfer through the window. Depending on the coating, it can reduce heat loss, reduce solar gain, or improve overall window performance.

Window-to-Wall Ratio

Window-to-wall ratio is the percentage of a wall made up of windows. It affects daylight, heat loss, solar gain, views, and overheating risk.

Window-to-Floor Ratio

Window-to-floor ratio compares window area to room or building floor area. It can help evaluate daylight and solar gain, but the ideal ratio depends on climate, orientation, glazing, shading, and thermal mass.

Aperture

In passive solar design, aperture usually refers to the opening or glazing area that admits sunlight into the building.

Shading Terms

Shading

Shading is the use of architectural elements, landscape features, or devices to block unwanted sunlight. It helps prevent overheating and glare.

Roof Overhang

A roof overhang is the portion of a roof that extends beyond the wall. In passive solar design, overhangs can be sized to block high summer sun while admitting lower winter sun.

Brise-Soleil

Brise-soleil is an architectural shading system, often made of fixed or adjustable fins, louvers, or screens, that controls direct sunlight.

Louvers

Louvers are angled slats used to block, filter, or redirect sunlight and airflow. They can be fixed or adjustable.

Exterior Shading

Exterior shading blocks sunlight before it passes through the glass. It is usually more effective for reducing heat gain than interior shading.

Interior Shading

Interior shading includes curtains, blinds, and shades located inside the building. It can reduce glare and improve comfort, but it may not prevent heat from entering as effectively as exterior shading.

Deciduous Shading

Deciduous shading uses trees or plants that lose leaves seasonally. In some climates, this can provide summer shade while allowing more winter sun.

Ventilation and Cooling Terms

Natural Ventilation

Natural ventilation uses wind pressure, temperature differences, and building openings to move air through a building without relying entirely on mechanical fans.

Cross Ventilation

Cross ventilation occurs when air enters through one opening and exits through another, usually on an opposite or adjacent side of the space.

Stack Ventilation

Stack ventilation uses the natural rise of warm air. Warm air exits through high openings, while cooler air enters through lower openings.

Night Flushing

Night flushing is a passive cooling strategy that uses cooler night air to remove heat from the building and cool thermal mass. It works best where nights are cool and humidity is manageable.

Air Movement

Air movement improves perceived comfort by helping the body release heat. Ceiling fans can support comfort even when they do not reduce actual air temperature.

Ventilation Path

A ventilation path is the planned route that air follows through a building. Good ventilation paths help move air efficiently through occupied spaces.

Passive Cooling Load Reduction

Passive cooling load reduction means reducing the need for mechanical cooling through shading, insulation, ventilation, glazing control, roof design, and reduced solar heat gain.

Building Envelope Terms

Building Envelope

The building envelope is the physical separation between indoors and outdoors. It includes walls, roof, floor, foundation, windows, doors, insulation, air barriers, and moisture control layers.

Insulation

Insulation resists heat flow through the building envelope. It helps retain useful heat in winter and reduce unwanted heat gain in summer.

Airtightness

Airtightness describes how well a building prevents uncontrolled air leakage. Airtight buildings still need intentional ventilation for indoor air quality.

Air Barrier

An air barrier is a material or system that controls air movement through the building envelope. It must be continuous to work well.

Thermal Bridge

A thermal bridge is a path where heat moves more easily through the building envelope, often through framing, concrete, steel, or poorly insulated connections.

R-Value

R-value measures resistance to heat flow. Higher R-value generally means better insulating performance.

Vapor Control

Vapor control is the management of moisture movement through building assemblies. It is especially important in cold, humid, or mixed climates.

Heat Loss

Heat loss is the movement of heat from indoors to outdoors. It can occur through walls, roofs, floors, windows, doors, air leakage, and thermal bridges.

Climate and Performance Terms

Climate-Responsive Design

Climate-responsive design adapts architecture to local sun, temperature, humidity, wind, rainfall, and seasonal conditions. Passive solar design should always be climate-responsive.

Heating Degree Days

Heating degree days are a climate indicator used to estimate heating demand. More heating degree days generally indicate a colder climate.

Cooling Degree Days

Cooling degree days are a climate indicator used to estimate cooling demand. More cooling degree days generally indicate a hotter climate.

Daily Temperature Swing

Daily temperature swing is the difference between daytime and nighttime temperatures. It affects whether thermal mass and night ventilation may be useful.

Passive Solar Fraction

Passive solar fraction describes the portion of a building’s heating load supplied by passive solar gain. It helps create realistic expectations about passive solar contribution.

Overheating

Overheating occurs when indoor temperatures rise above comfortable levels. It can happen when solar gain, internal heat, insulation, and poor ventilation are not properly controlled.

Thermal Comfort

Thermal comfort describes how comfortable people feel in relation to temperature, humidity, air movement, radiant surfaces, clothing, and activity level.

Microclimate

A microclimate is the specific climate condition of a small area, such as a shaded urban lot, a windy hilltop, or a courtyard. Microclimate can affect passive solar performance.

Passive Solar Systems Terms

Direct Gain

Direct gain is a passive solar system where sunlight enters the living space directly through windows and warms interior thermal mass such as floors or walls.

Indirect Gain

Indirect gain is a passive solar system where thermal mass is placed between the sun and the living space. The mass absorbs solar heat and releases it indoors later.

Isolated Gain

Isolated gain is a passive solar system where solar heat is collected in a separate space, such as a sunspace or attached greenhouse, and transferred to the main living area when useful.

Trombe Wall

A Trombe wall is an indirect gain passive solar system made of a massive wall placed behind glazing. Sunlight heats the wall, and the wall slowly releases heat indoors.

Sunspace

A sunspace is a glazed space attached to a building that collects solar heat. It can function as a sunroom, greenhouse, buffer space, or solar collection zone.

Sun-Tempered Design

Sun-tempered design is a modest passive solar approach that uses good orientation and slightly increased solar-facing glazing without the complexity of a full passive solar system.

Hybrid Passive Solar System

A hybrid passive solar system combines multiple passive strategies, such as direct gain, thermal mass, sunspaces, shading, and natural ventilation.

Comparison Table: Common Passive Solar Terms

Term	Simple Meaning	Why It Matters	Related Guide
Solar gain	Heat from sunlight entering a building	Can support winter heating or cause overheating	Design principles
Thermal mass	Material that stores and releases heat	Reduces temperature swings	Thermal mass
Solar orientation	How a building faces the sun	Affects solar gain, daylight, and shading	Solar orientation
Glazing	Glass or transparent window material	Controls heat, light, views, and heat loss	Window placement
Overhang	Roof projection beyond the wall	Can block summer sun and admit winter sun	Shading and overhangs
Direct gain	Sunlight enters living space directly	Simple passive solar heating strategy	Direct gain
Trombe wall	Mass wall behind glazing	Stores solar heat and releases it later	Trombe wall
Building envelope	Boundary between indoors and outdoors	Controls heat loss, heat gain, air leakage, and moisture	Materials

Common Mistakes When Learning Passive Solar Terms

1. Confusing Passive Solar Design With Solar Panels

Solar panels generate electricity. Passive solar design uses the building itself to manage heat, light, and comfort.

2. Thinking Solar Gain Is Always Good

Solar gain is useful only when heat is needed and can be controlled. In warm seasons or hot climates, solar gain may be unwanted.

3. Assuming Any Heavy Material Is Useful Thermal Mass

Thermal mass must be exposed and connected to the indoor environment. A heavy material hidden behind finishes or insulation may not help much.

4. Treating Insulation and Thermal Mass as the Same Thing

Insulation slows heat flow. Thermal mass stores heat. Passive solar homes often need both.

5. Ignoring Climate

Passive solar terms are climate-dependent. A strategy that works in a cold sunny region may fail in a hot humid region.

6. Confusing Ventilation With Air Leakage

Ventilation is intentional air exchange. Air leakage is uncontrolled and can reduce comfort and energy performance.

FAQ About Passive Solar Glossary Terms

What is the most important passive solar term to understand first?

The most important term to understand first is passive solar design. It describes the overall method of using orientation, windows, thermal mass, insulation, shading, and ventilation to improve comfort and reduce energy demand.

What is solar gain?

Solar gain is heat from sunlight entering a building. It can help warm a home in winter but can also cause overheating if not controlled.

What is thermal mass?

Thermal mass is material that absorbs, stores, and slowly releases heat. Concrete, brick, stone, tile, adobe, rammed earth, and masonry are common examples.

What is the difference between insulation and thermal mass?

Insulation resists heat flow, while thermal mass stores heat. Insulation helps retain comfort, and thermal mass helps moderate temperature swings.

What does direct gain mean?

Direct gain means sunlight enters the living space directly through windows and warms interior thermal mass such as floors or walls.

What is a Trombe wall?

A Trombe wall is a massive wall placed behind glazing. Sunlight heats the wall, and the wall slowly releases stored heat indoors.

What is solar orientation?

Solar orientation is how a building is positioned in relation to the sun. It affects solar gain, daylight, shading, room layout, and overheating risk.

What is passive cooling?

Passive cooling uses design strategies such as shading, ventilation, reflective surfaces, thermal mass, and reduced solar gain to improve comfort without relying only on air conditioning.

What is the building envelope?

The building envelope is the boundary between indoors and outdoors. It includes walls, roof, floor, foundation, windows, doors, insulation, air barriers, and moisture control layers.

Why are passive solar terms climate-dependent?

Passive solar terms are climate-dependent because the same strategy can help in one climate and cause problems in another. Climate affects solar gain, shading, thermal mass, ventilation, humidity, and comfort.

Conclusion

This passive solar glossary gives you a practical foundation for understanding passive solar architecture, climate-responsive design, and energy-efficient homes. Terms such as solar gain, thermal mass, orientation, glazing, shading, ventilation, insulation, and building envelope are not isolated ideas. They work together as part of one building system.

The more clearly you understand these terms, the easier it becomes to evaluate passive solar house plans, ask better questions, avoid common mistakes, and understand how a building responds to sun, climate, materials, and daily use.

After reviewing this glossary, continue with focused guides such as passive solar orientation, thermal mass, direct gain passive solar, and passive solar shading and overhangs.
